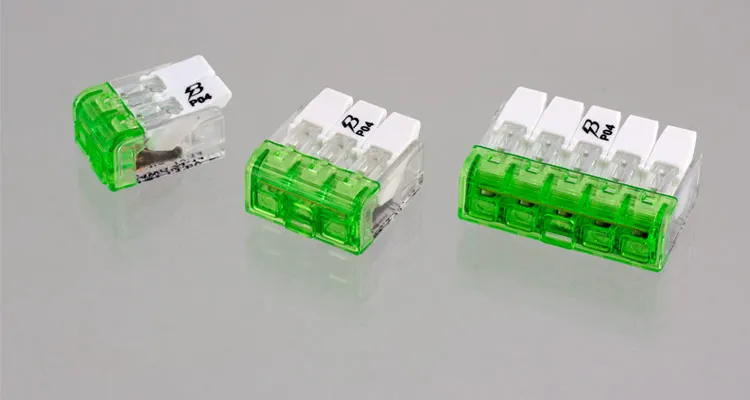

• Product descriptions from the supplierOverviewProducts DescriptionSplicing connector with levers Green Range; for all conductor types; max. four mm²; 2-conductor/3-conductor/4-conductor; clean housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; clean Technical parameterIEC/ENULRated voltage (V):450600Rated current (A):32Operating temperature:T8590℃Connection capacity:Solid wire0~4mm²AWG 12-14Stranded wire0~4mm²AWG 12-14Flexible wire0~4mm²AWG 12-14Stripping length (mm):1113Wiring way:Plug-inPlug-inReusable wiring:OKOKUnipolar/multipolar:UnipolarUnipolarPoles:2~51-2Insulator materials:Polycarbonate(PC)Polyamide 66Fire rating:UL 94V-2UL 94V-2Packaging DeliveryPacking details:1, common packing: 1pcs connector put right into a clear polybag, every big polybag with a label. then put into a carton. 2, packing as buyer&;s option. Delivery details:1, the lead time for samples is 1~7 days, 7~15 days for the production. 2, for the shipping, the goods could be delivery via means of client&;s abroad explicit account like DHL,TNT,UPS,Fedex, or delivery by means of our forwarder ProfileFAQQ1: Are you a manufacturer? A1: We are Trade-Manufacture, have own factories (Factory Brand"CAZN" "STARF"), Shenzhen CAZN Electrics co.,ltd had handed ISO9001 at 2018. we will gift one-stop station service for connectors and cables with manufacturing unit price. Q2:How about your quality? A2: We assured that 100% in nice quality, the worth would be nicer than varied same suppliers. Q3: After-sales service A3: All the inquiry might be response within 24 hours, the commucation will be effective. Q4: Is it customizable? A4: We can settle for customization, yet there is a bound MOQ; We have our personal mold room, may give mildew enterprise Q5: What is your lead time? A5: It will depend on the order quantity and the season you put the order. Usually we can deliver inside 10-30 days for small quantity, and about 30 days for large quantity Part No you're looking for those models?221-413 221-412 221-415 221-2411 221-2401 221-613 221-612 221-615 221-423 221-425 221-422 221-483 221-482 221-485 221-682 221-685 221-683

•
•
•
•
•
