Preces apraksts

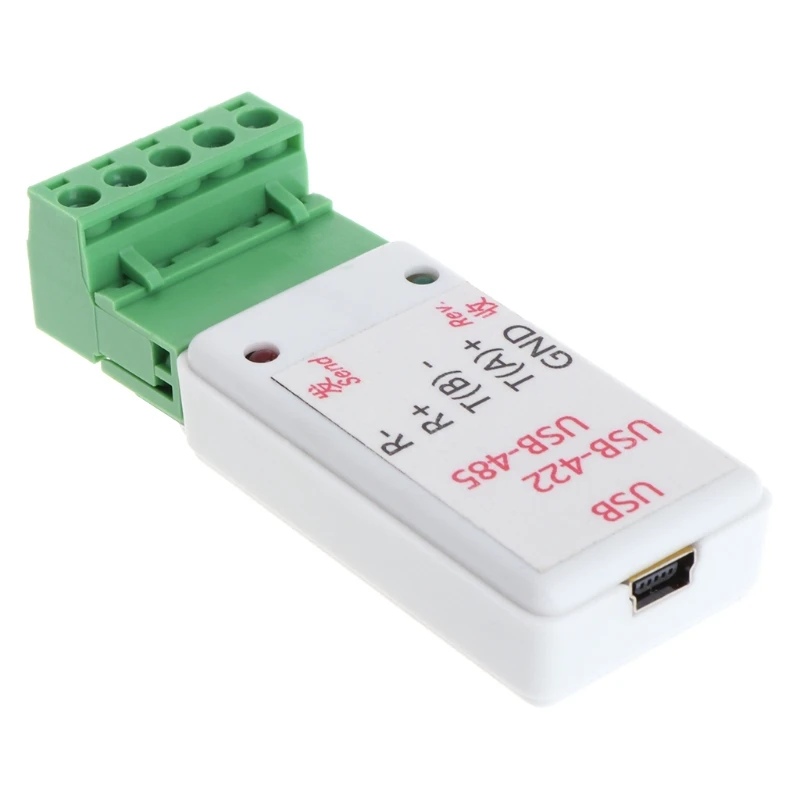

• Specification: 1. This converter makes use of a high-performance ch340T chip supports most operating components (including Windows Linux) 2. Baud Rate Range: 300 ~ 115200bsp! 3. With TVS surge protection, strict criteria for product design by way of method of industry 4. All at a glance. Board with 3 indicators. One is the ability indicator: USB traditional calories light (red), one computer via USB to 422 (485), and then deliver out the info indicator (red), there is a 422 (485) to acquire data laptop importing information received indicator (green) light. 5. Very smooth to carry, with the traditional U disk almost. 6. The converter is a USB2 interface, compatible with USB1. 7. PC through records cable straight into the end on it, no exterior energy supply. Pin definition: USB-422 terminal definitions 1 --------------- R-(receive) 2 --------------- R+ (receive) three --------------- T-(send) 4 --------------- T+ (send) five --------------- GND (ground) USB-485 terminal definitions 1 --------------- empty 2 --------------- empty 3 --------------- B-(485 mode) 4 --------------- A (485 mode) 5 ----- GND (ground) Package include: 1pc 2 in 1 USB to 485 USB to 422 Converter Adapter 1pc USB cable

•
•
•
•
•
