Description

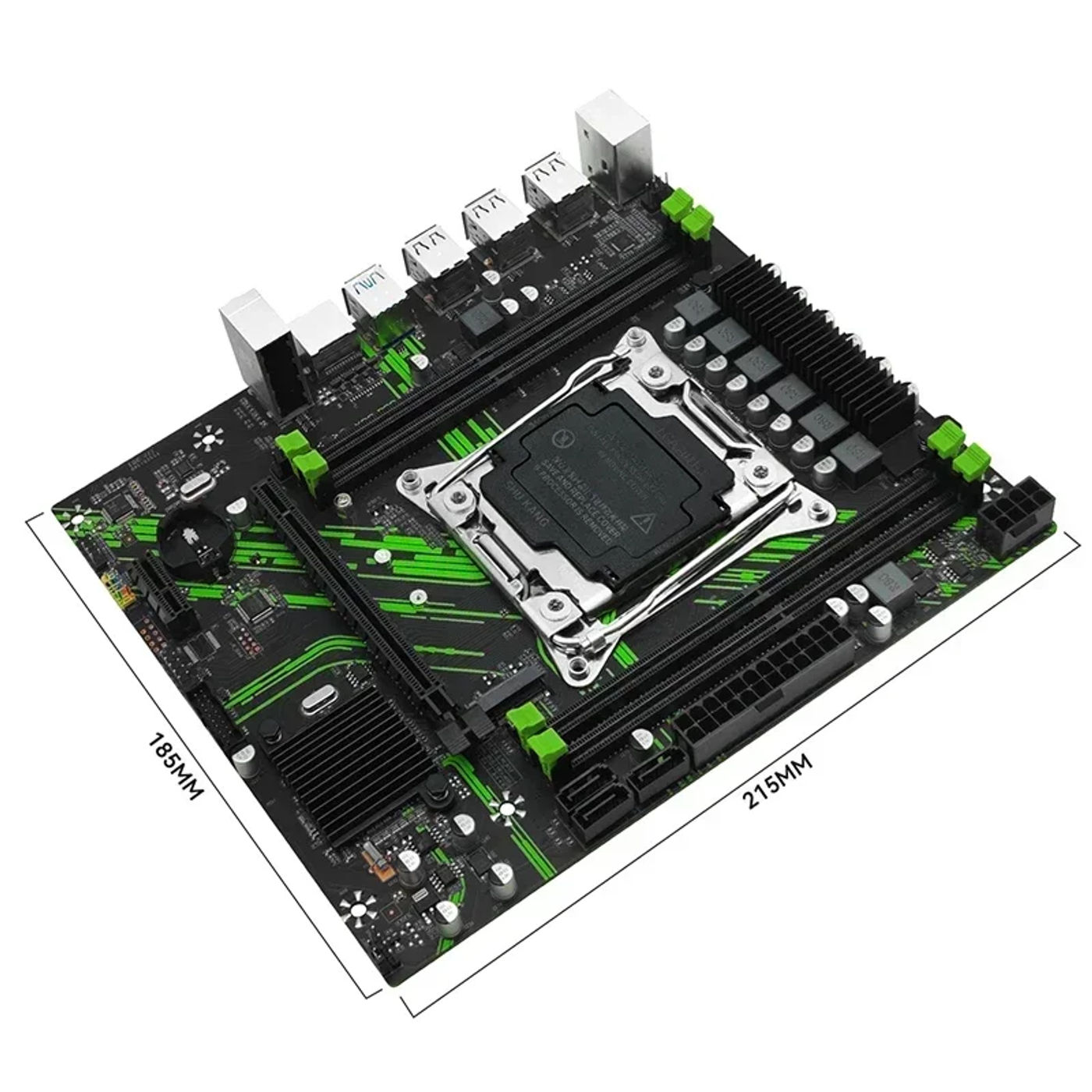

• Package contains: Motherboard: MACHINIST X99 PR9 2011-3 Motherboard *1PCS. Processor: Intel Xeon E5 2680 V3 *1PCS. RAM: DDR4 8GB desktop memory *2PCS. Free accessories: I/O shield *1, SATA cable *1. Motherboard information: >>Brand:MACHINIST. >>Motherboard model: X99 PR9. >>Processor: Support LGA 2011-3 series, >> Chipset: B85/Q87/C226 Chipset. >>Memory Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ. Maximum means 128GB (32G × 4). Memory slot: 4*288 PIN DDR4. (Note: Please use foreign manufacturers akin to Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.) >> Post I/O PS/2: 1 KB interface + 1 MS interface. USB interface: 6 USB2; 2 USB3. Ethernet: 1 Gigabit network card. Audio: 1 (Mic-in, Line-out, Line-in). >>Internal connector COM port: 1 2x5Pin pin. SATA interface: 2 (SATA2), 1 (SATA3). M:1 (nvme/sata). PCIe: 1 PCIe 16x, 1 PCIe 1x. F_PANEL: 1 2x5Pin pin. >>Outline dimensions: 215mm * 185mm. Processor information: Model: E5 2680 V3, CPU frequency: 2, Number of cores: 12, Number of threads: 24, Turbo frequency: 2, Production process: 22nm, TDP: 120W, The processor supports memory specifications: DDR3-1600, DDR4-2133. Notice: >>All products are packaged after instruction manual testing earlier than sending. If there are any presents missing, please understand! >> Regarding customs issues, please be sure that you could clear up the customs clearance issue via yourself. If you cannot clear up it, we do not recommend that you purchase items in our store. We aren't answerable for customs duties. thank you for understanding. Notice: (1) The coloration of the tank bottom plate may well range from batch to batch, but it won't impression the use of the product. Products are consistently optimized and upgraded. (2) Due to steer measurement, please enable an error of 1-3mm. (3)Due to diverse exhibits and diverse lights, the photographs might not show the actual color of the item. thanks for understanding. (4) The platform calls for a powerful energy supply. Please make certain your power delivery is enough for this platform. (At least 500w mannequin energy supply)

•
•
•
•
•
