Description

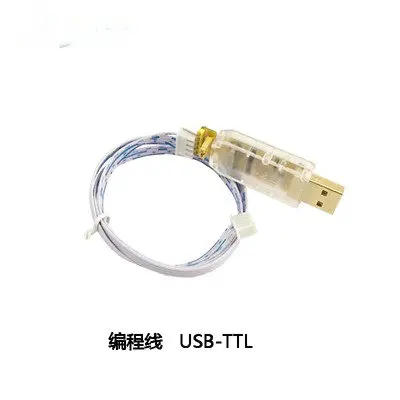

• Type 1: JL1N-10MT+ Bare board Type 2: JL1N-10MT+ with guide rail housing Type 3: JL1N-14MT + Bare board Type 4: JL1N-14MT + with handbook rail housing Type 5: JL1N-20MT + Bare board Type 6: JL1N-20MT + with handbook rail housing Type 7: JL1N-24MT + Bare board Type 8: JL1N-24MT + with handbook rail housing Type 9: JL1N-06MR+ Bare board Type 10: JL1N-06MR + with instruction manual rail housing Type 11: JL1N-10MR + Bare board Type 12: JL1N-10MR + with guide rail housing Type 13: JL1N-14MR + Bare board Type 14: JL1N-14MR + with guide rail housing Type 15: USB-TTL programming line Type 16: USB-232 programming line Our companyPLCAll item are imported commercial grade32positionCPU，compatibleF-X1Nseries，Can download、upload 、Regulation、monitor。It could be flexibly utilized in varied business automatic leadership occasions，Such as metallurgy、chemical industry、Plastic、textile and diverse mild industries、food、package pretend、printing、building material、carpentry、central air-conditioning、Production package in industries resembling environmental defense equipment and unmarried process control device、Industrial assembly line、Industrial control package of various machine tools。The company brings collectively a set of good medical study teams with many years of rich working experience，Focus on commercial management product R D、production、sale，Can be Custom dedicated controller、Special functionsPLC。The energy circuit of the company's item has undergone multiple anti-interference design 、No fear of every kind of harsh electromagnetic interference working environment，PLCAll variations have been sprayed with three proofing paint，Better adapt to advanced software environment。 Tips：Some clients acknowledged it develop into slow to obtain the program，Our default achieve length is8000step，actual \\ Most prospects write no more than2000step，So set it in the programming software，NamelyDownload speed \\ Degree improvement4times\The atmosphere method is as follows：Click in entrance of the parameter within the program data list+After No，Will appearPLCparameter，again \\ double-clickPLCThe parameter surroundings interface looks to be after the parameter，In the parameter environment interface, exchange the reminiscence capability from8000Set as \\ 2000that will do。 \\ PLCData achieve address：pan/s/1eRNhn3O \\ Programming lineUSBturnTTLandUSBturn232Same driver。 \\ Driver address ：Baidu network disk： \\ After putting in the driver, a serial port will appear，Please select baud charge when downloading9600 \\ bookPLCSeries have2Independent232Serial port，One is232Level9pinmouth（2:TXD 3:RXD 5:GND）， \\ One isTTLLevel4pinmouth(1:GXD 2:TXD 3:RXD 4:5V)，The two ports would be programmed and linked \\ Connected to the touch screen。When programming，9pinPort selectionUSB-232Line；4pinPort selectionUSB-TTLLine。When connecting the touch screen，232Level9pinMouth direct use9pinMale to female twine connection contactTouch screen（Actually only3Root line，Namely2-2、3-3、5-5）。TTLLevel4pinI deserve to use my mouthCorporateTTLturn232Conversion board for232Level to hook up with the touch screen。 \\ Input excessive pace pulseC235,C238,C251,C253，Function andF-X1NSeries well matched \\ Y0,Y1Can send10Kpulse，Function andF-X1NSeries like minded \\ Encryption method：This board helps encryption，After the board is electrified，Point Online-Remote operation-stop itPLC[RUNChange toSTOP]-Point execution，Run gentle on circuit board after execution[RUN]It will be destroyed，Login keyword-New login keyword-input11111111（8individual1）determine，After encryption，I can only write in the future，Never read!!! \\ Wiring occasion Schematic diagram of set up dimensions This board could be connected with the display board of display and transmission parameters developed by way of our company within the process the programming port，Simple text，functionEquivalent to the touch screen，No programming，Display and input parameters after installation，If you should demonstrate and enter parameters, please click on the hyperlink to buy \\ notes: bookPLCOne circuit is in-built the boardAD(0-10V),All the wayDA(0-3),Add growth board and changeD5080Value of，Can become2AD(0-10V)or2DA(0-10V). If necessary, click \\ Link to purchase \\ \\ \\ \\ '

•
•
•
•
•
