Description

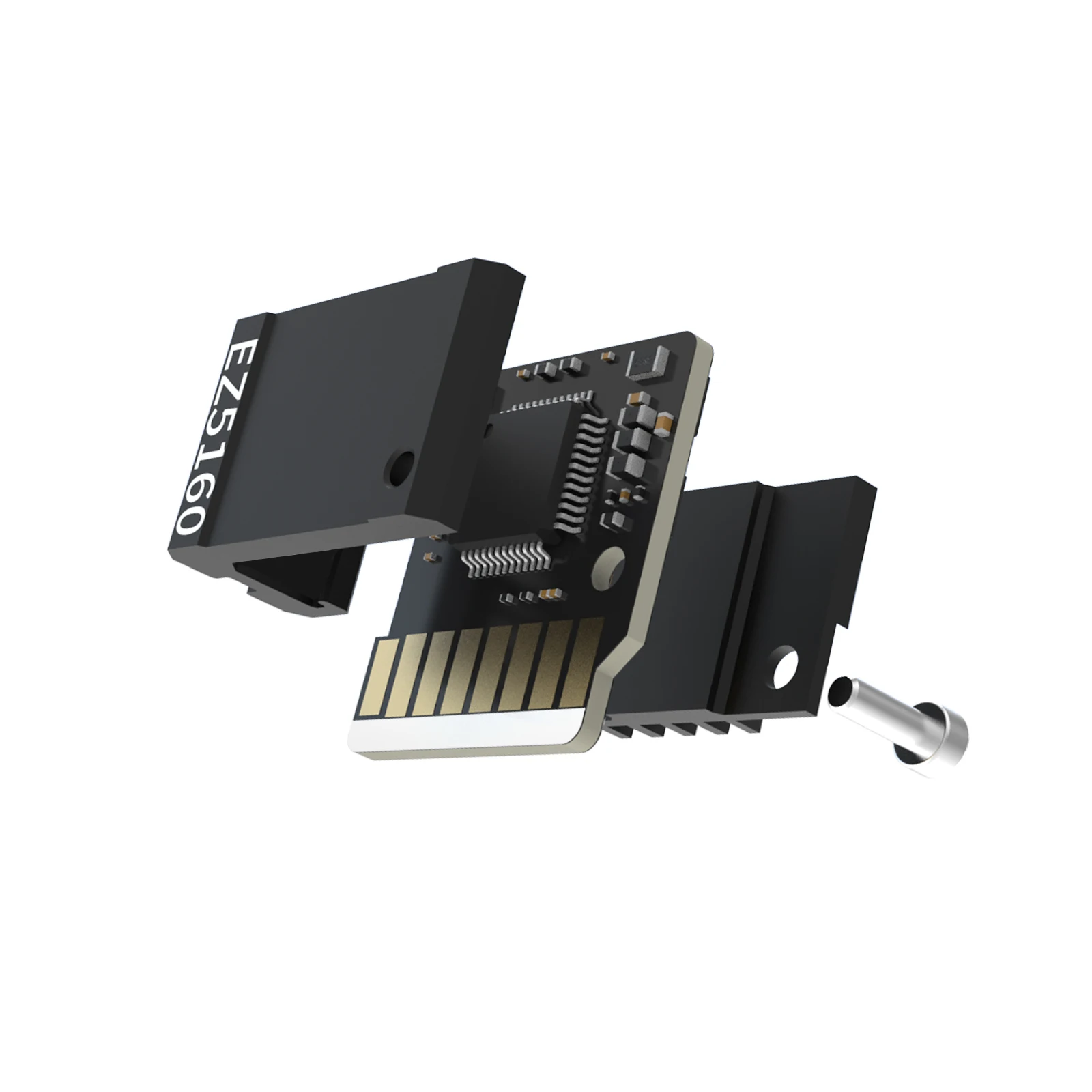

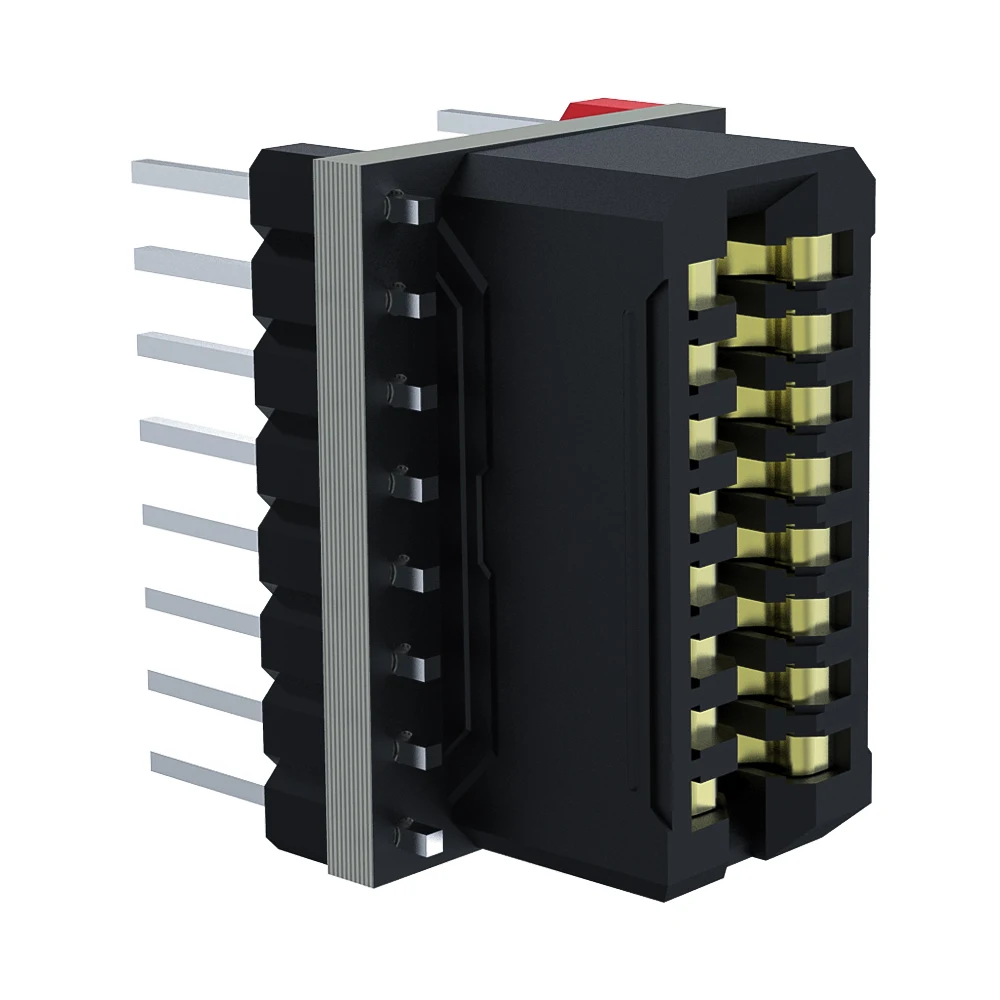

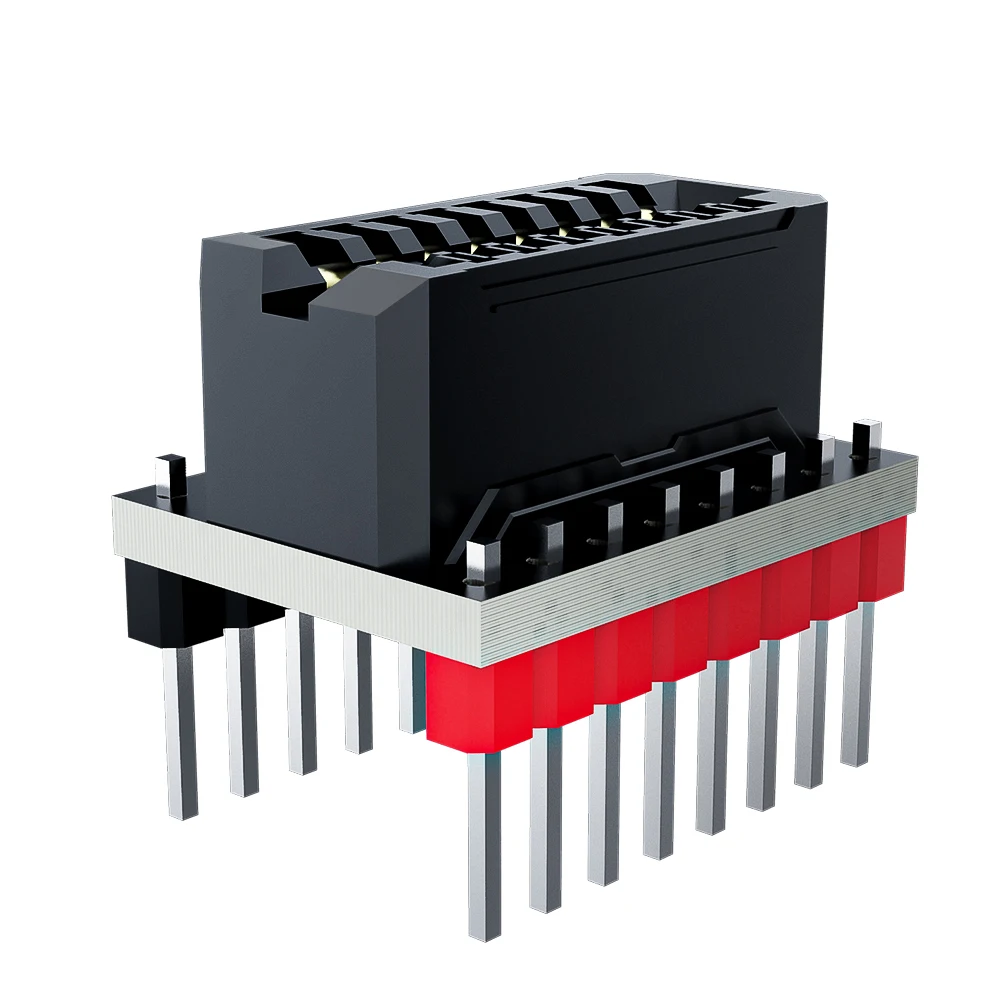

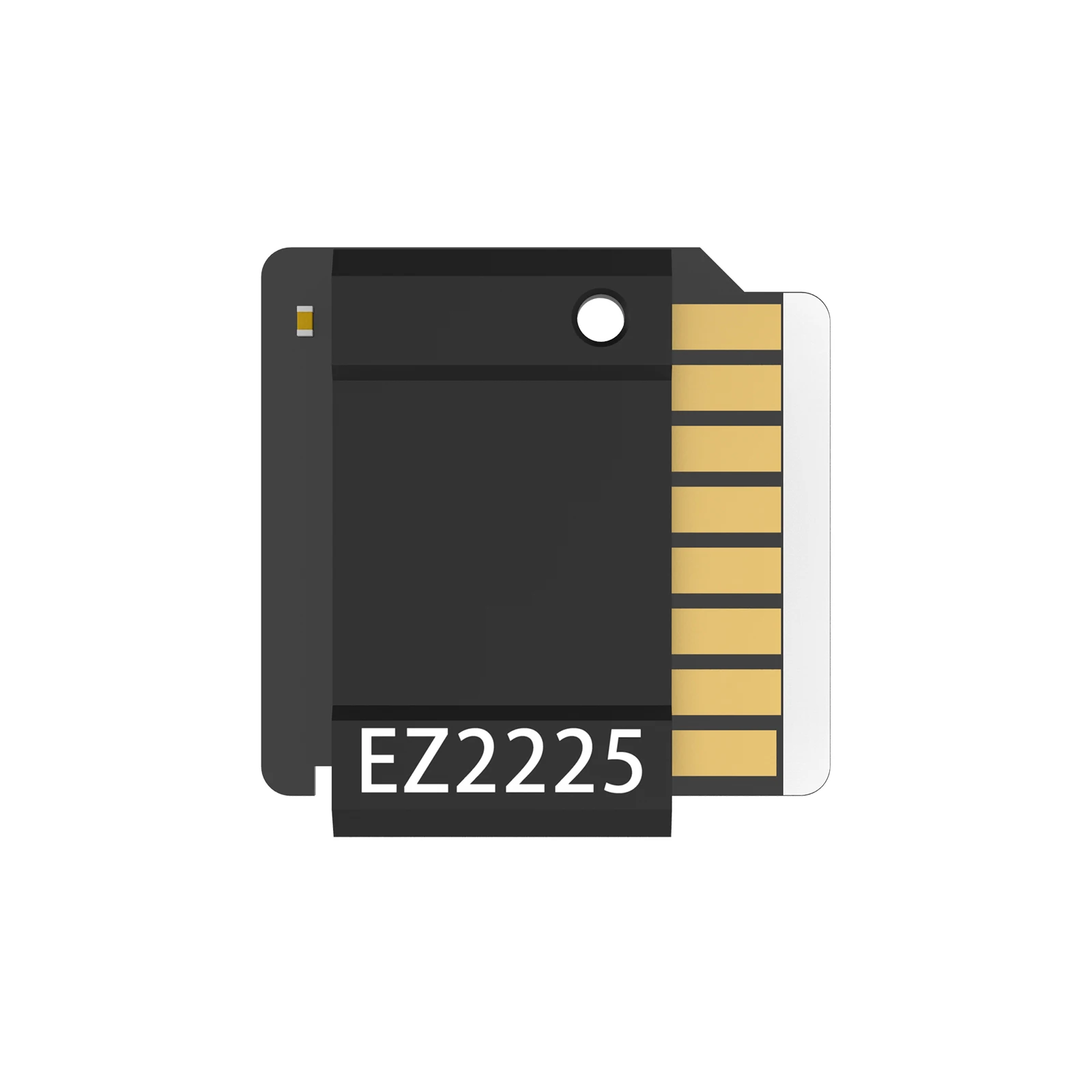

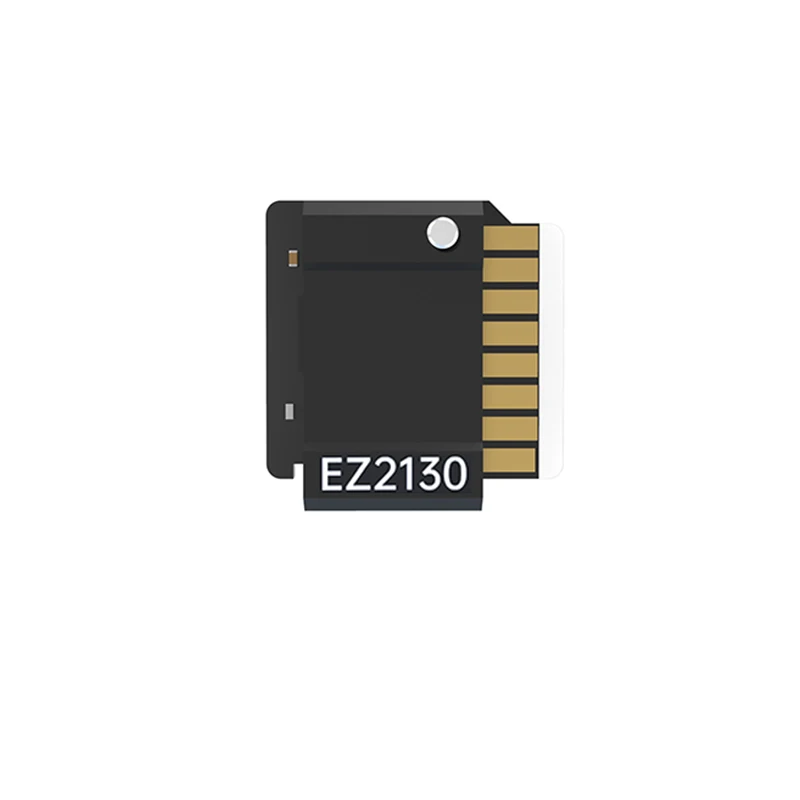

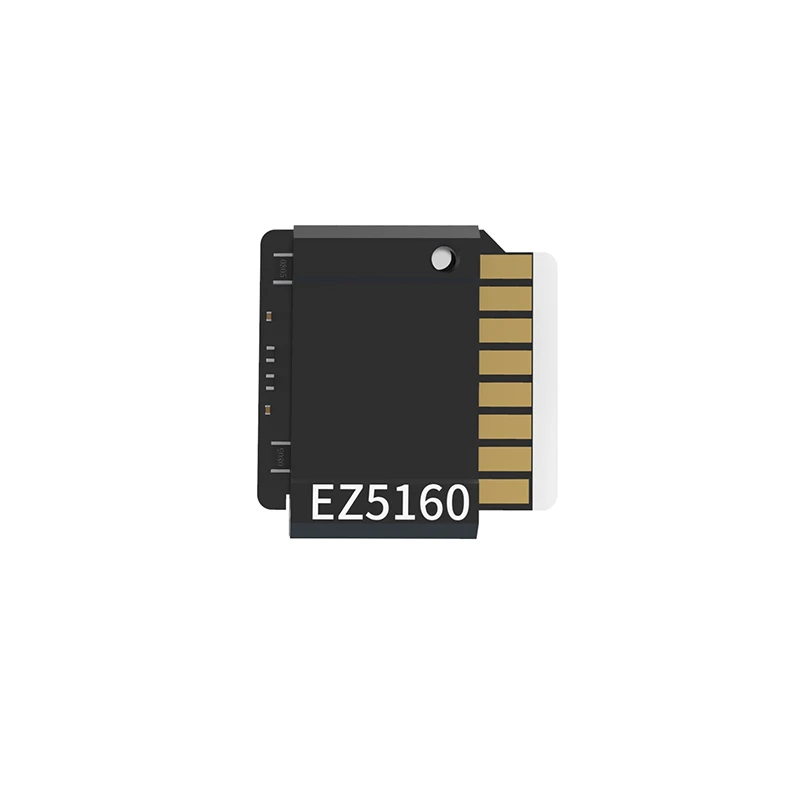

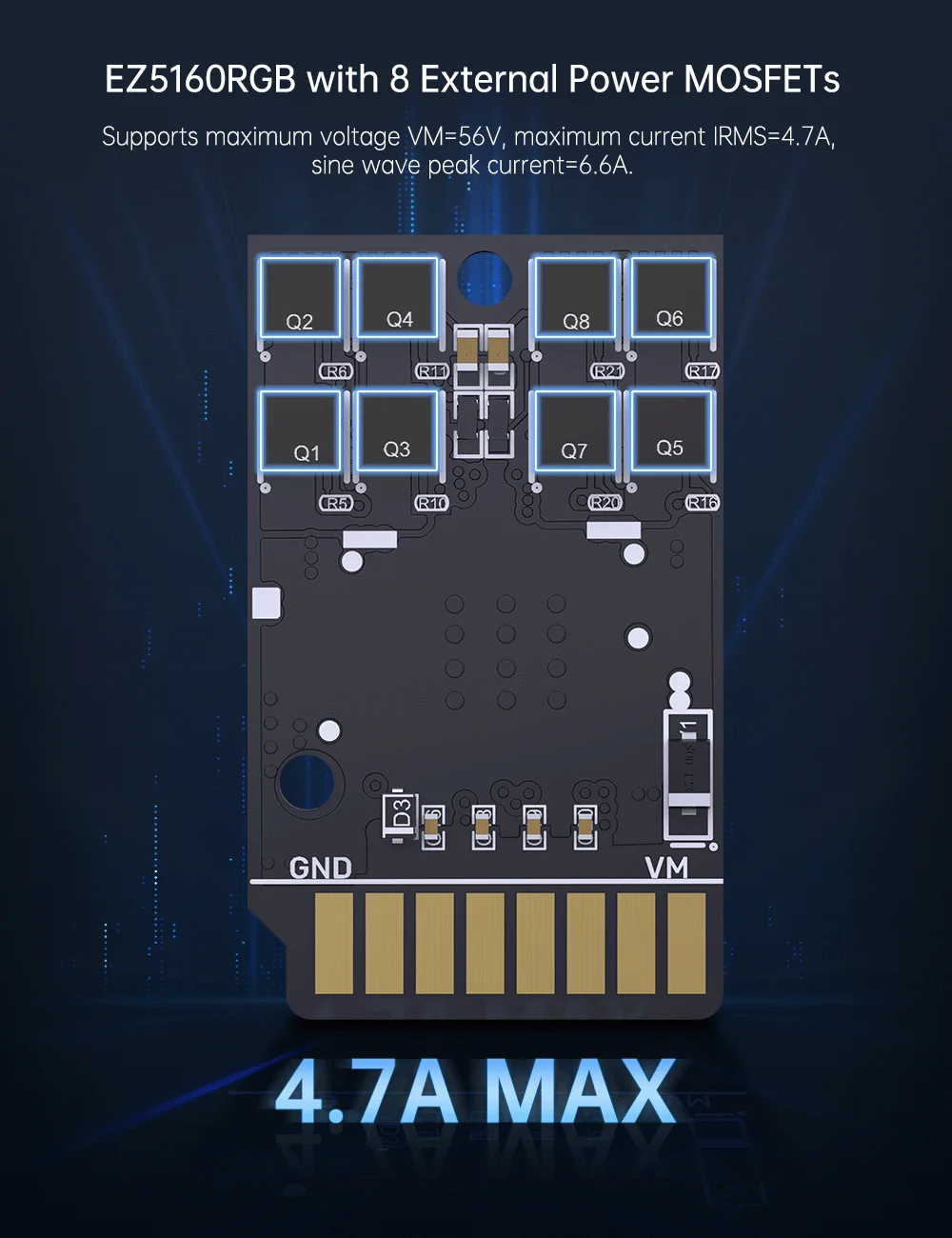

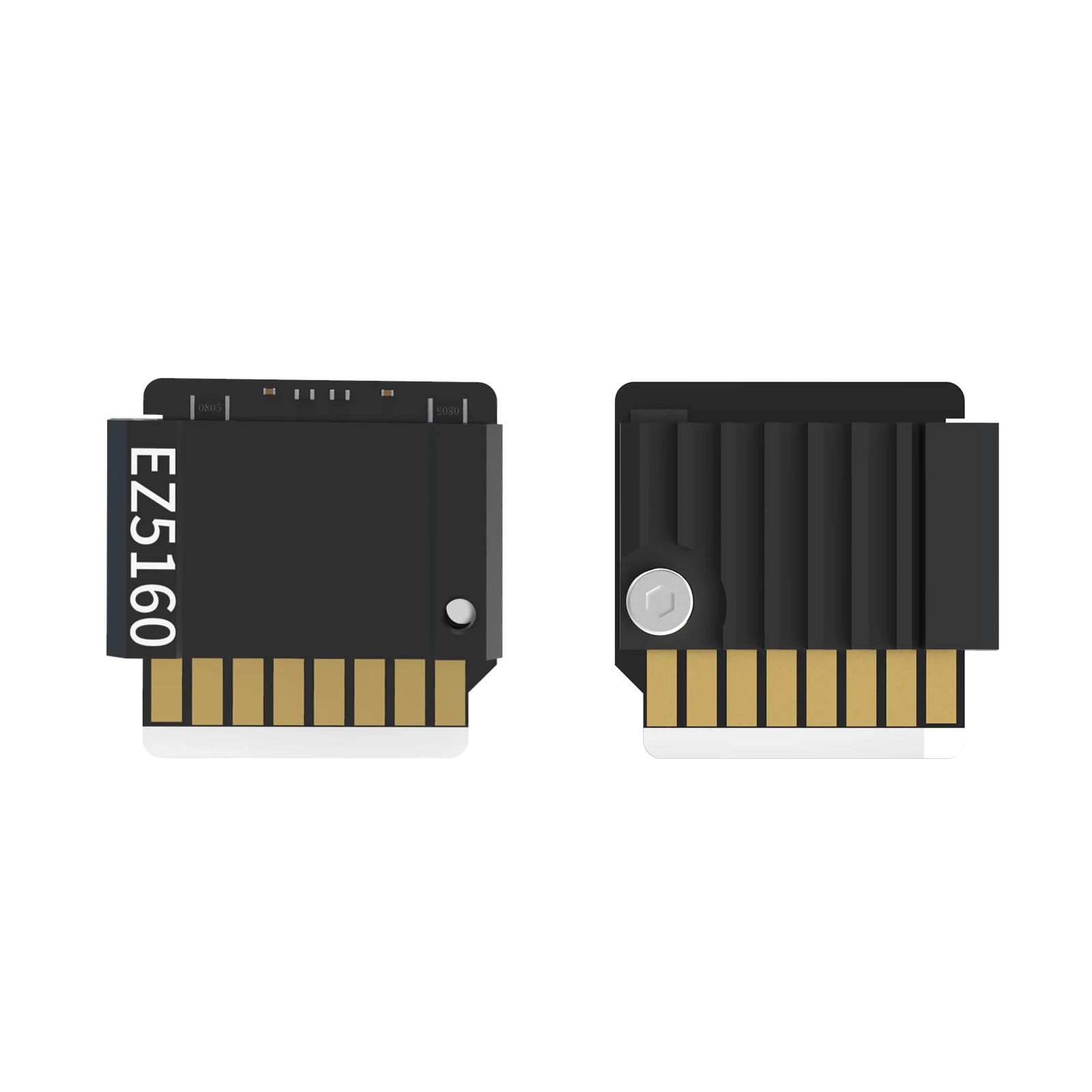

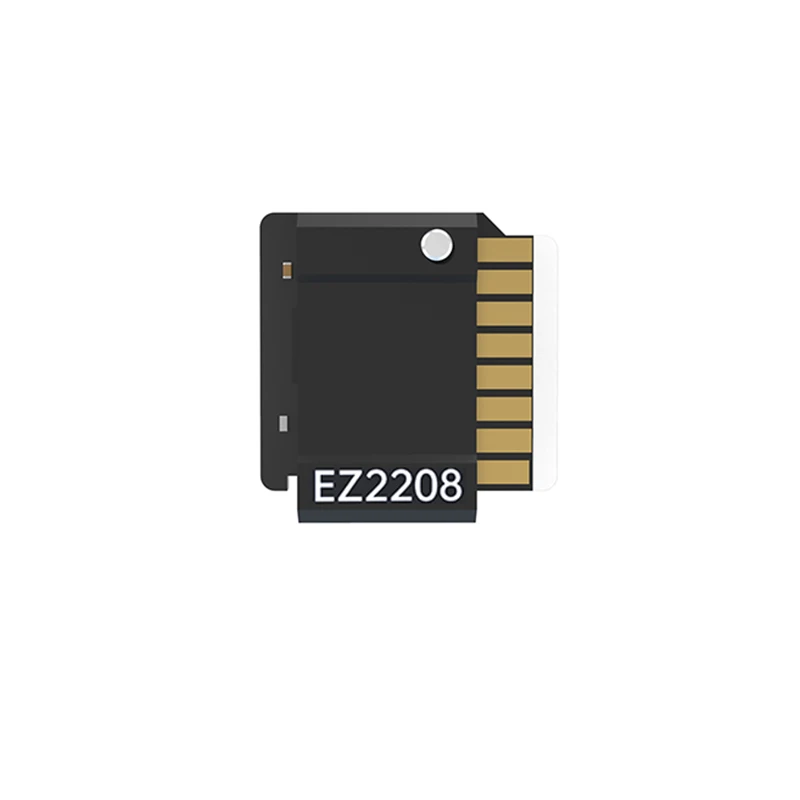

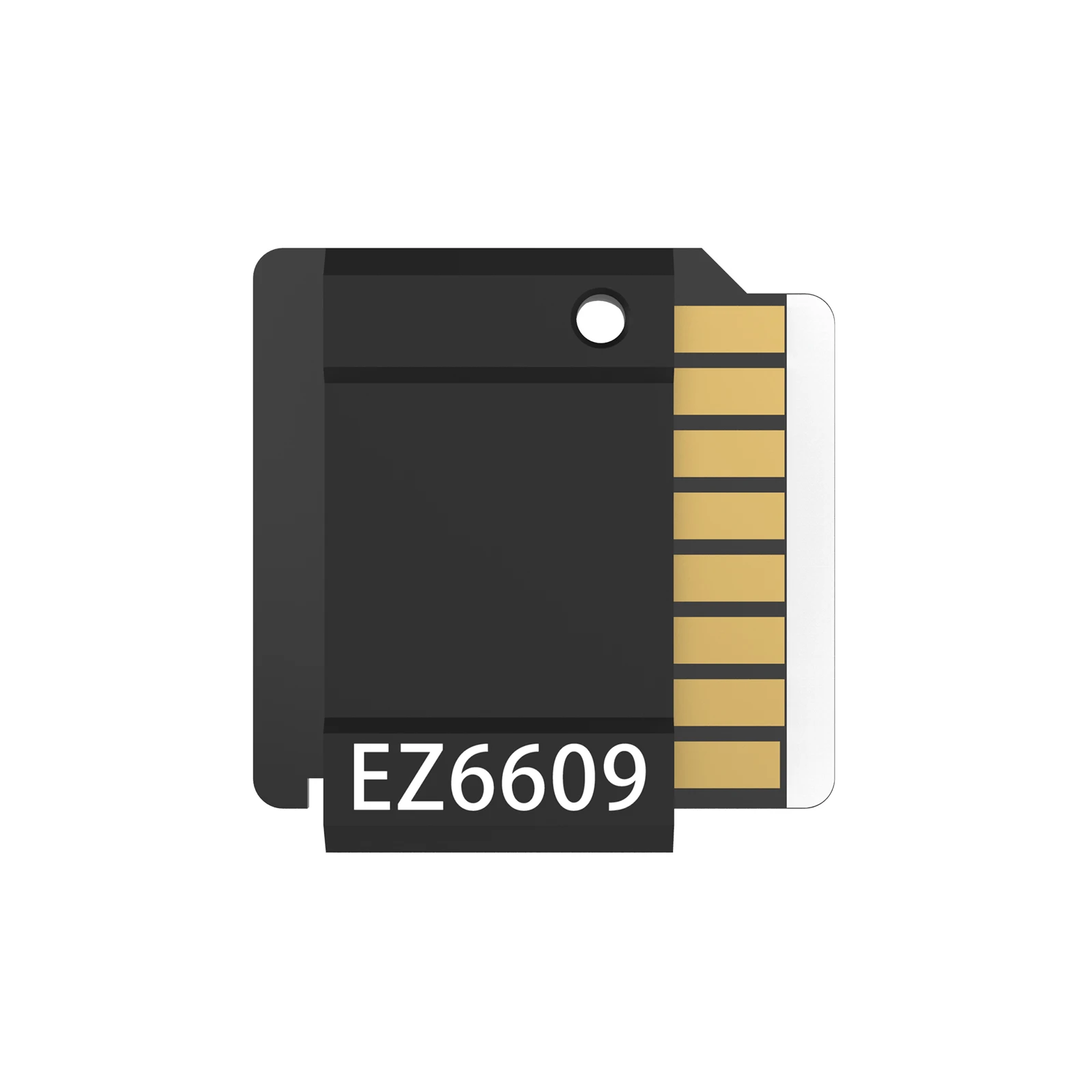

• EZ2130, EZ2208, EZ2209, EZ2225, EZ2226, EZ6609 EZ5160 RGB are pluggable stepper motor drive modules designed by our company, with excellent performance, convenient plugging and unplugging, beautiful and practical. EZ5160 Pro is a high-power stepper motor drive control chip, with an external MOSFET, its maximum voltage can reach 48V, thus the supported stepper motor range is wider, and the adaptability is higher. Series Driver Features 1. StealthChop can realize the mute lock of the motor and the mute when running at low speed. It is recommended to select it when the maximum speed of the motor is lower than 300RPM; 2. SpreadCycle can achieve quietness and low power consumption in a wide range of speed and torque. It is recommended to select it when the maximum speed of the motor exceeds 300RPM; 3. StallGuard2™: It can be used for motor stall detection when there is no limit switch (limit switch is recommended); 4. The newly developed board frame is used to match the new connector, so that customers can experience the aesthetic feeling and avoid the accident that the old driver pin hurts the hand; 5. Adopt a new type of customized heat sink to enhance the heat dissipation capacity while protecting the driver chip from external damage; 6. While adopting the environmentally friendly packaging method, the cost performance of the product is improved. EZ5160 Pro Features 1. With the external MOSFET, it can support higher voltage and larger current, and the maximum current can reach 8A (because the module is limited by size and connector, the current cannot exceed 3A); 2. Ultra-quiet mode; 3. Low heat generation, which is far lower than that of 2100, 2130, and other drivers; 4. It can prevent the motor from shaking; 5. Not easy to lose steps; 6. Can drive 57 stepper motors; 7. The newly developed board frame is used to match the new connector so that customers can experience the aesthetic feeling and avoid the accident of the old driving pin stabbing the hand; 8. Using a new type of specially made heat sink to enhance the heat dissipation as well as protect the driver chip from external damage; 9. Using the environmentally friendly packaging to improve the cost-effectiveness. More information:

•
•
•
•
•
