Description

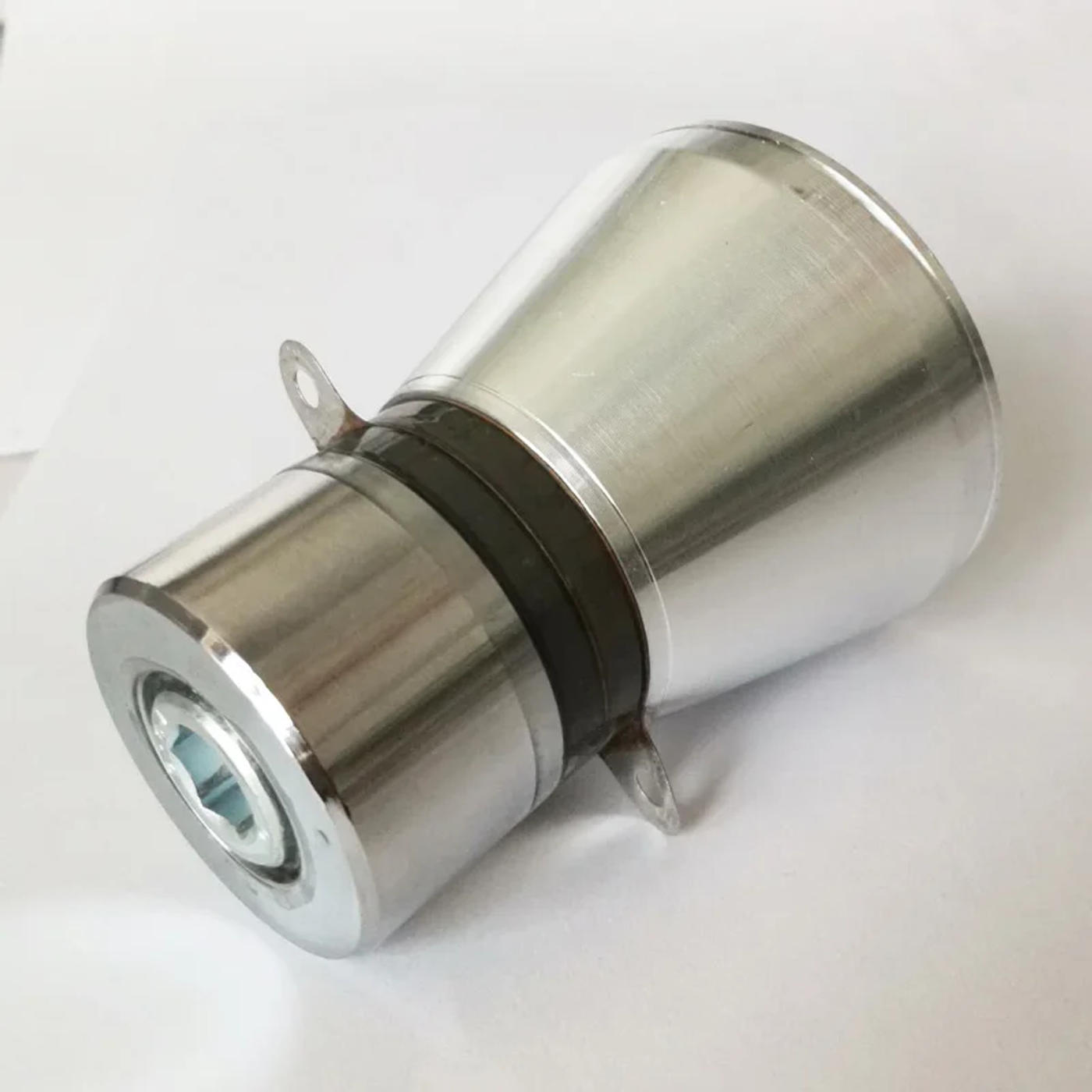

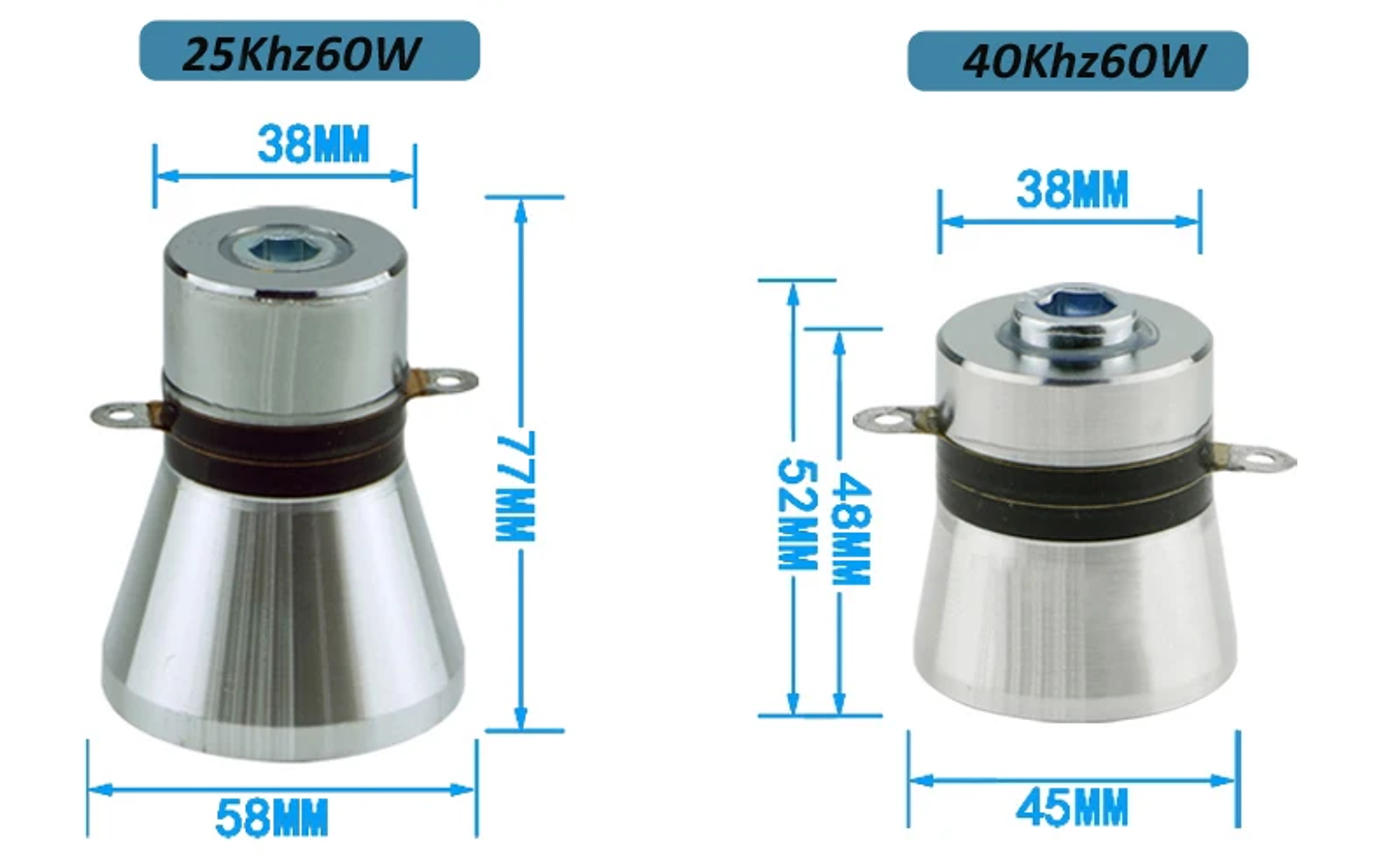

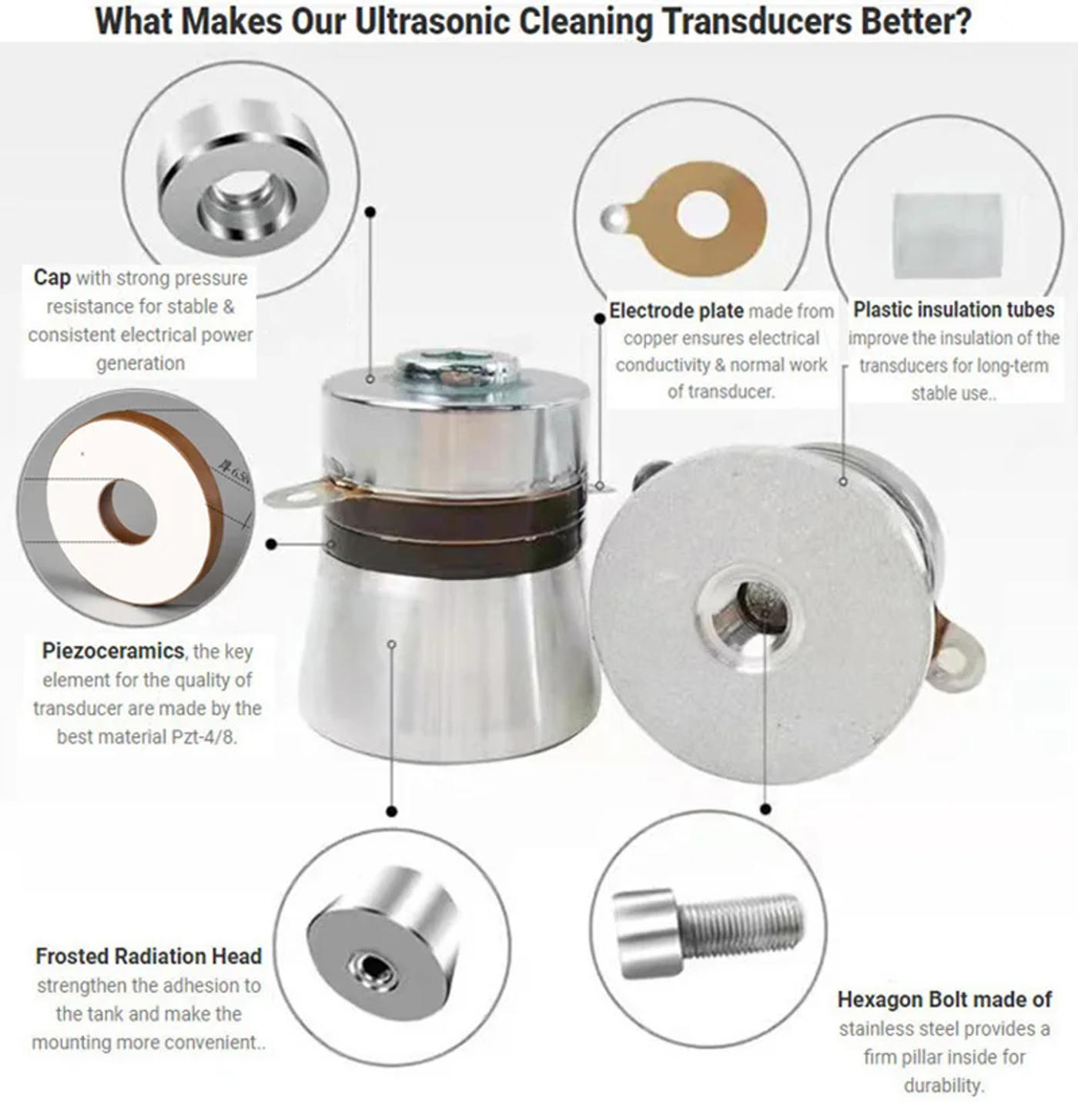

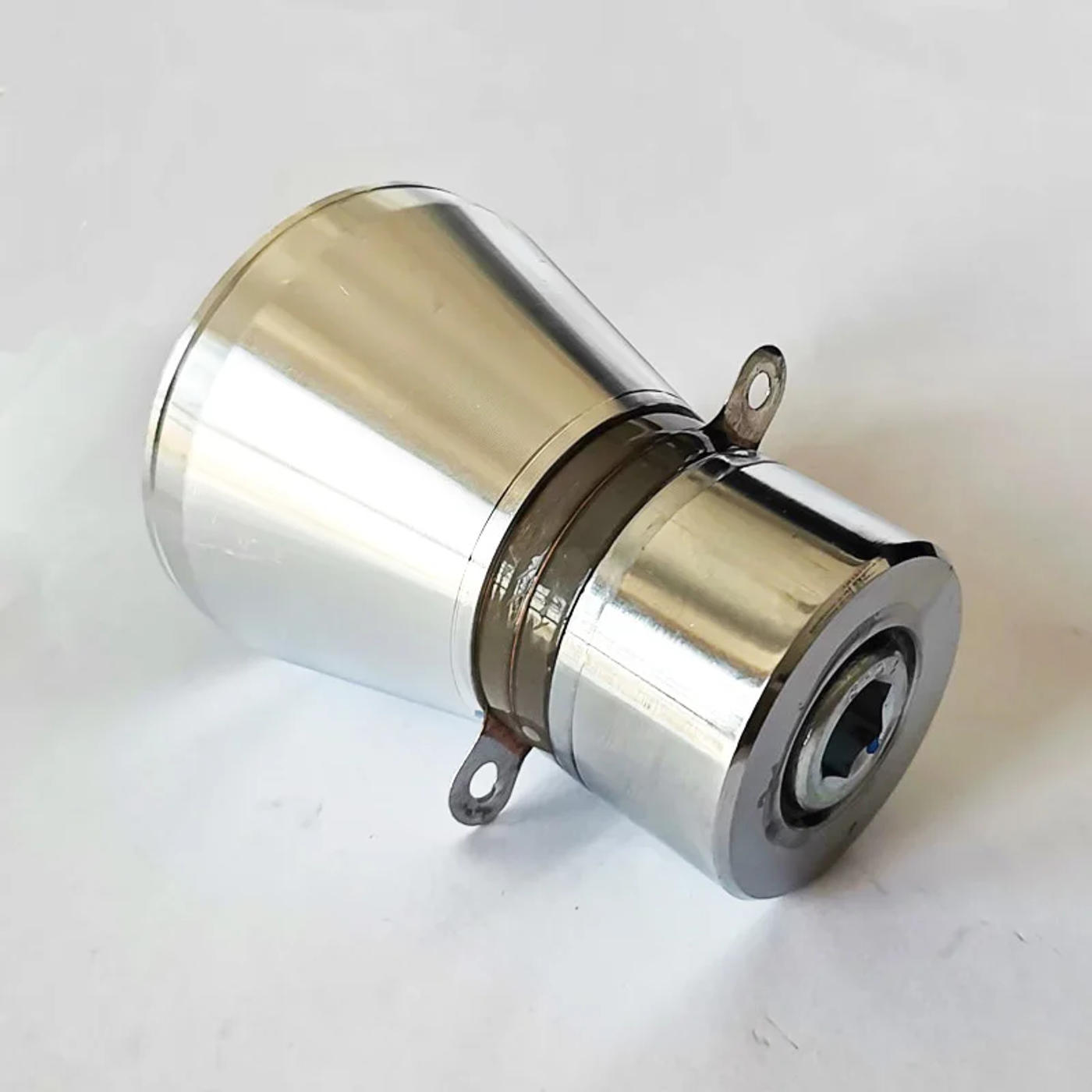

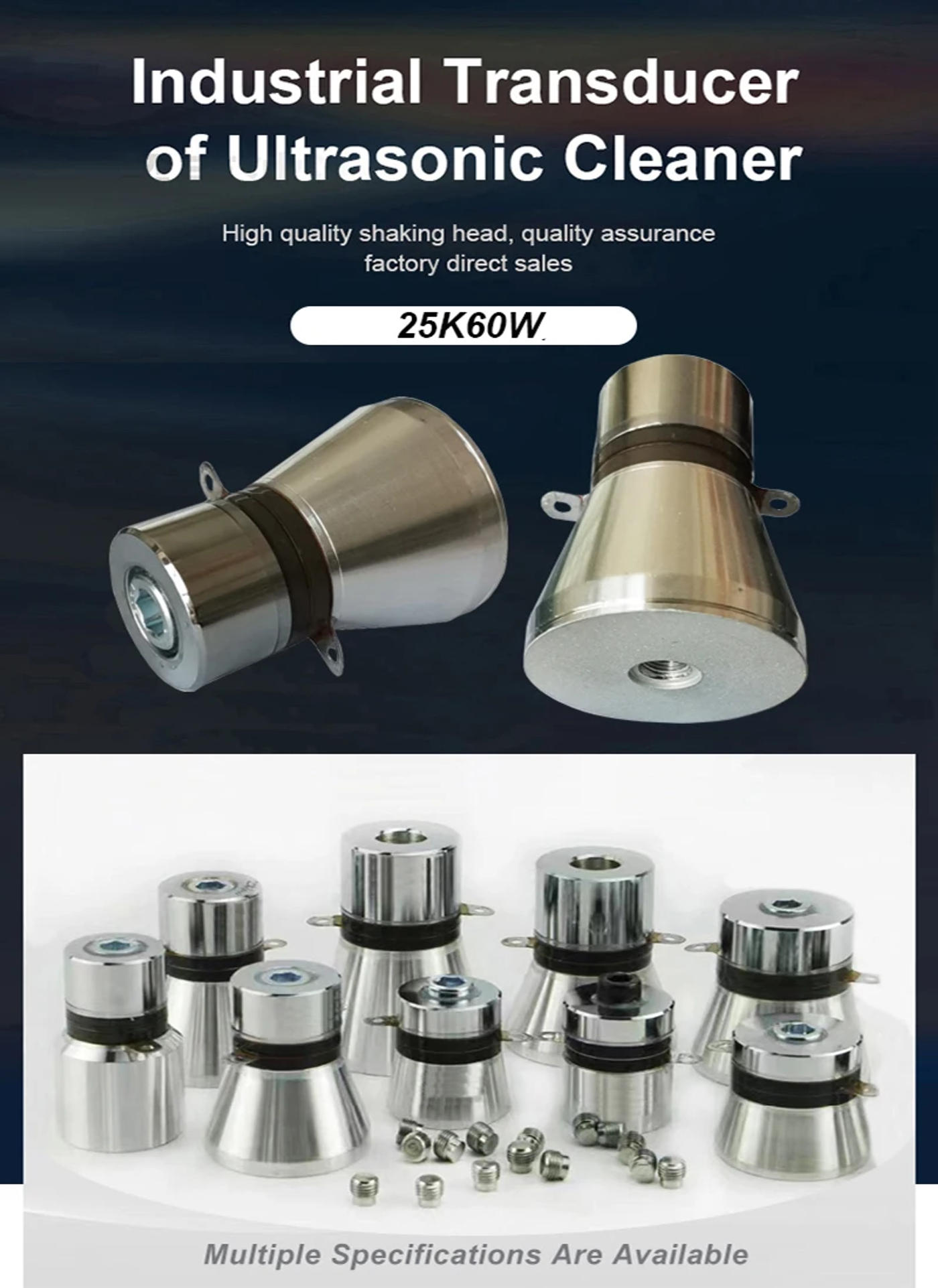

• Relevant RecommendationApplication: ultrasonic cleansing transducer normally utilized in ultrasonic cleansing industry product features:High mechanical Q value,high move efficiency. High quality piezoelectric ceramic supplies with good warmth resistence. Lower resonant Impedance amplitude,high vibration speed. Frequency and static capacitance preserve more consistency. High output power. ight with bolt ,be clean to install,reliable :Frequency: 25kHz Power: 60W Material: Stainless Steel Static capacitance:5400 ± 10% pF Resonant Impedance: 10-20Ω Dimensions: As photographs shown.(approx) Bottom diameter: 58mm Height: 76mm Purposes: for ultrasonic cleaningUltrasonic transducer often known as ultrasonic vibrator, which can convert immoderate frequency electrical energy into mechanical calories effectively. Ultrasonic cleansing transducer is the core element of ultrasonic cleansing machine. It features a radiation head, an electrode sheet, a rear metallic cover, a pre-stressed screw (screw), a piezoelectric wafer, and an insulating tube. The tendencies of transducers depend on supplies replacement and manufacturing activity can customize all specs of Non-standard Ultrasonic Transducer in step with your requirement. Cmplete in specifications we firmly trust that "a well matched one for you!"How to return to a choice the ultrasonic frequency?1) Below 40KHz, commonly used for cleaning normal business elements or more dirt, comparable to hardware equipment ingredients to take away oil and wax and assorted work. (The extra dirtier and tougher to clean, deserve to want the more decrease frequency) 2) Above 40kHz, mostly used for precision cleansing , equivalent to optical/optoelectronic glass instruments and semiconductor materials/devices and other ingredients of precision cleaning: 1. How to attach ultrasonic transducer with pcb board? : Out + : Connect the ultrasonic transducer&;s positive. : Out -: Connect the ultrasonic transducer&;s negative. : AC: connect the power supply. 2. If you have the consequent questions. pls touch with us as soon as possible, we will help to unravel them in time. : The goods had been damaged after receiving. : Loss of the goods. : Want to benefit additional info about the right way to build ultrasonic machine. : Have the questions for our service. : Other helps. We don&;t simply provide you with a quote,we also offer you quality and fate enterprise prospects. SL Ultrasonic have greater than 15 years of craftsmanship in the ultrasound industry. We will present you dependable information and operation service at any time. Want to learn extra about Ultrasonic cleansing system, Please touch us.

•
•
•
•
•
